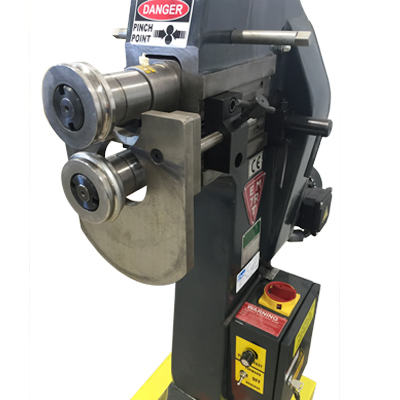

Empire Model EMT-7R Power Rotary Machine

Spec Sheet
Operator’s Manual

14 ga Galvanized/ 16 ga Stainless — (max capacity is 16 gauge stainless)

We offer three models of this Power Rotary machine: the Hand Crank, Air Cylinder and Hydraulic Cylinder. It’s worth noting that all three models include the Hand Crank. This base model is easily the top seller followed by the Air Cylinder Model which speeds up beading (or crimping) operations on spiral fittings. The Hydraulic Cylinder model is recommended for shops using exclusively for Vanstone flanges.

While the flanging rolls require a controlled step down of the upper shaft which only the Hand Crank or the Hydraulic Cylinder machines can offer, a simple solution for shops that like the speed afforded by the air cylinder but want to do some flanging is to take the cylinder off when needed. It takes about two minutes to get the cylinder off and put the hand crank on.

Pricing (effective January 15th, 2024):

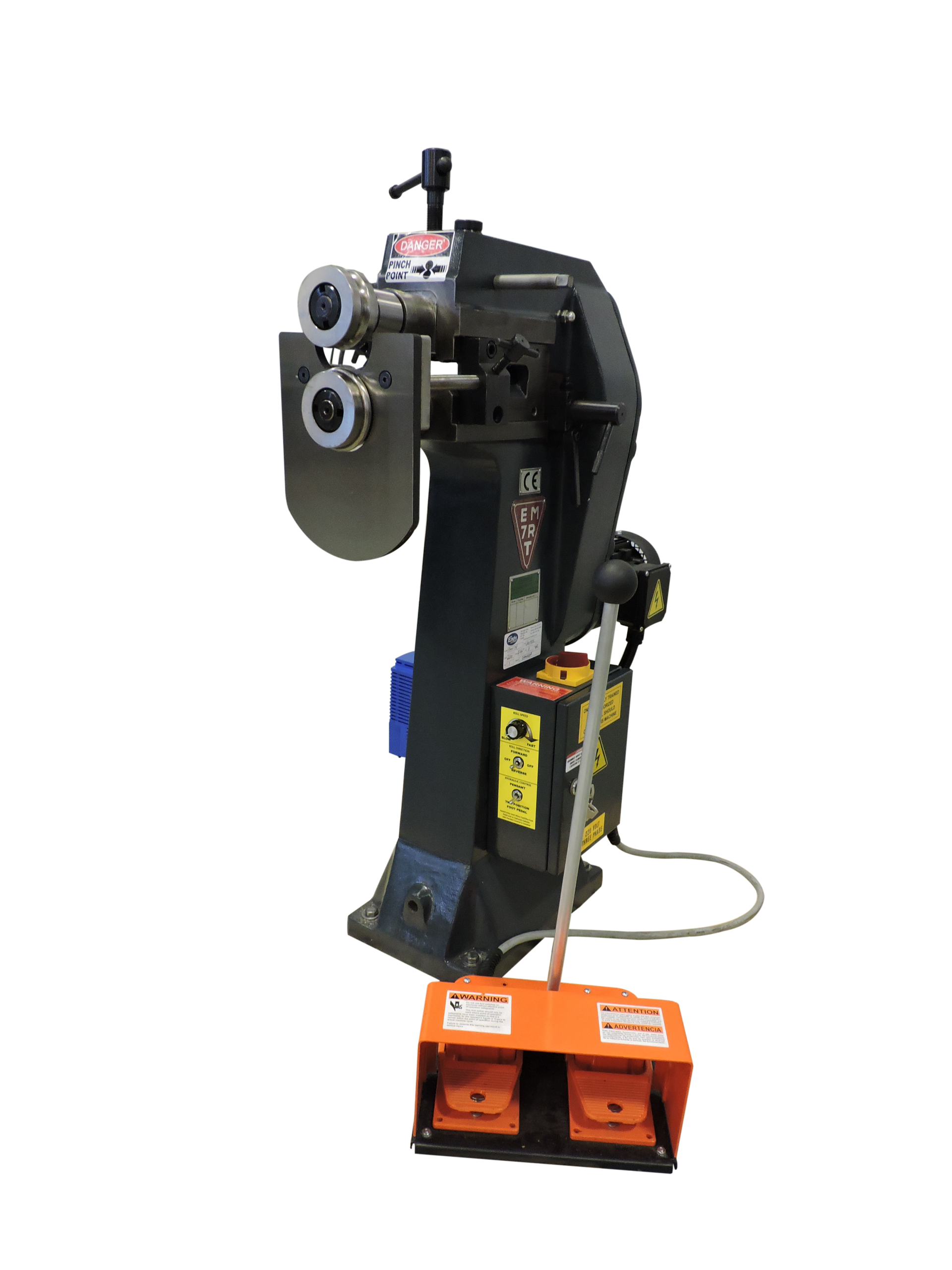

EMT-7R (Base Machine) #36001 110 volt Single Phase: $8,495.00 USD (Item Code: EMT-7R-110) Video Demo

220V Base Models ***DISCONTINUED***
EMT-7R (Base Machine) 220 volt 1 Phase (Item Code: EMT-7R-220V)
EMT-7R (Base Machine) 220 volt 3 Phase (Item Code: EMT-7R-3PH) Video Demo

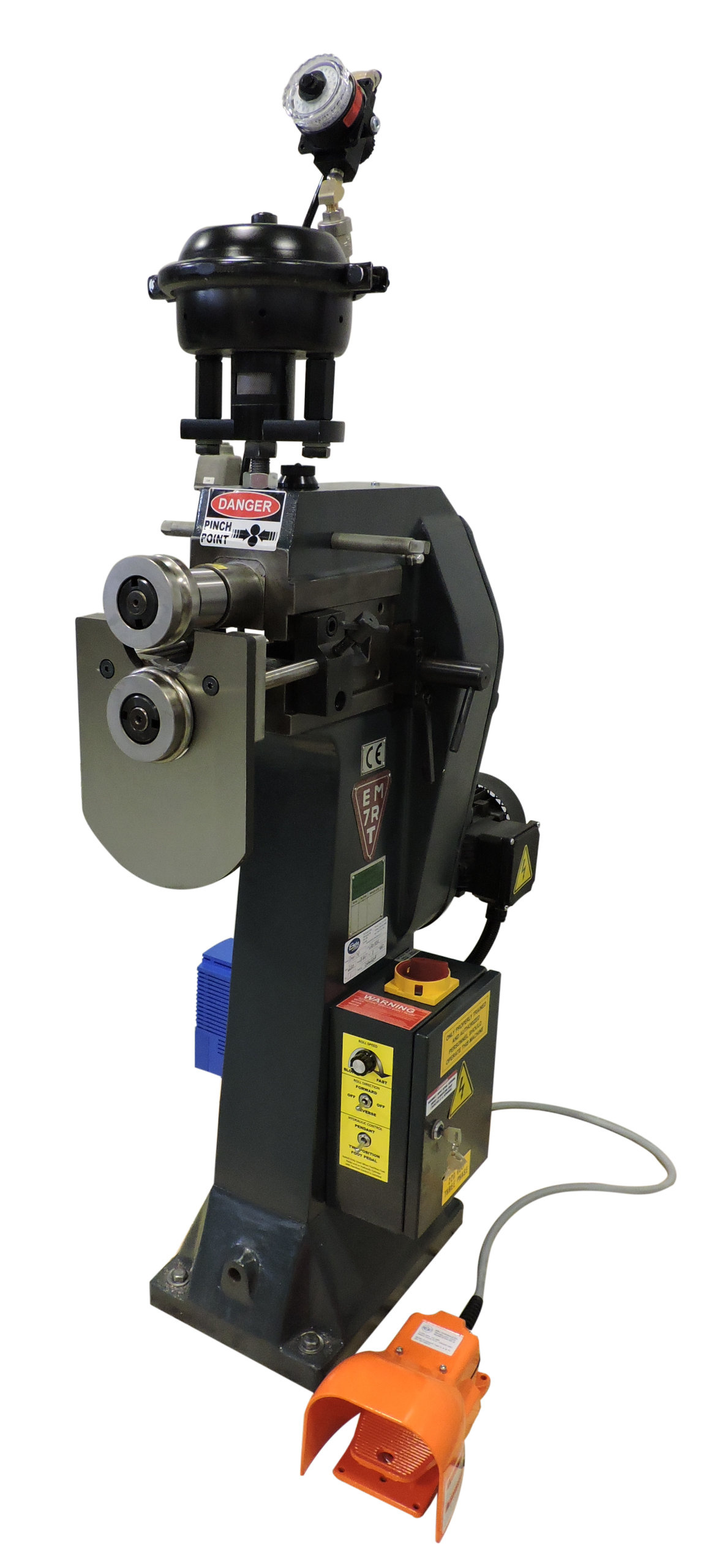

EMT-7R #36002 with Air Cylinder and variable speed control 110 Volt Single Phase: $9,495.00 USD (Item Code: EMT-7R-AC) Video Demo

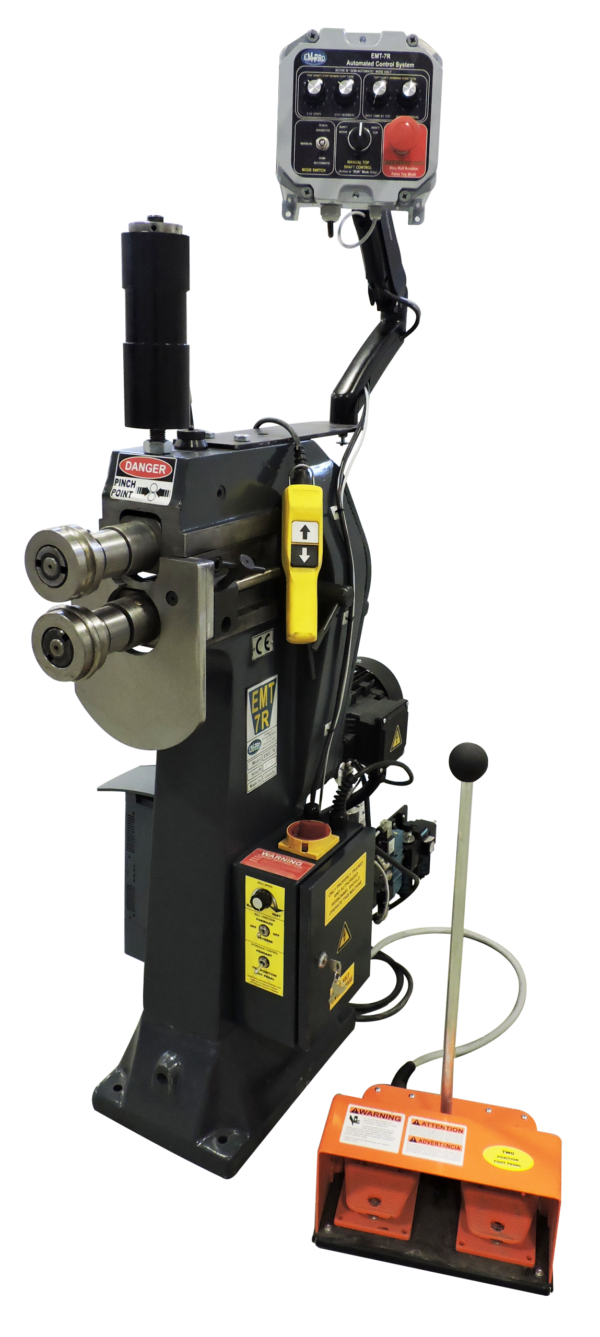

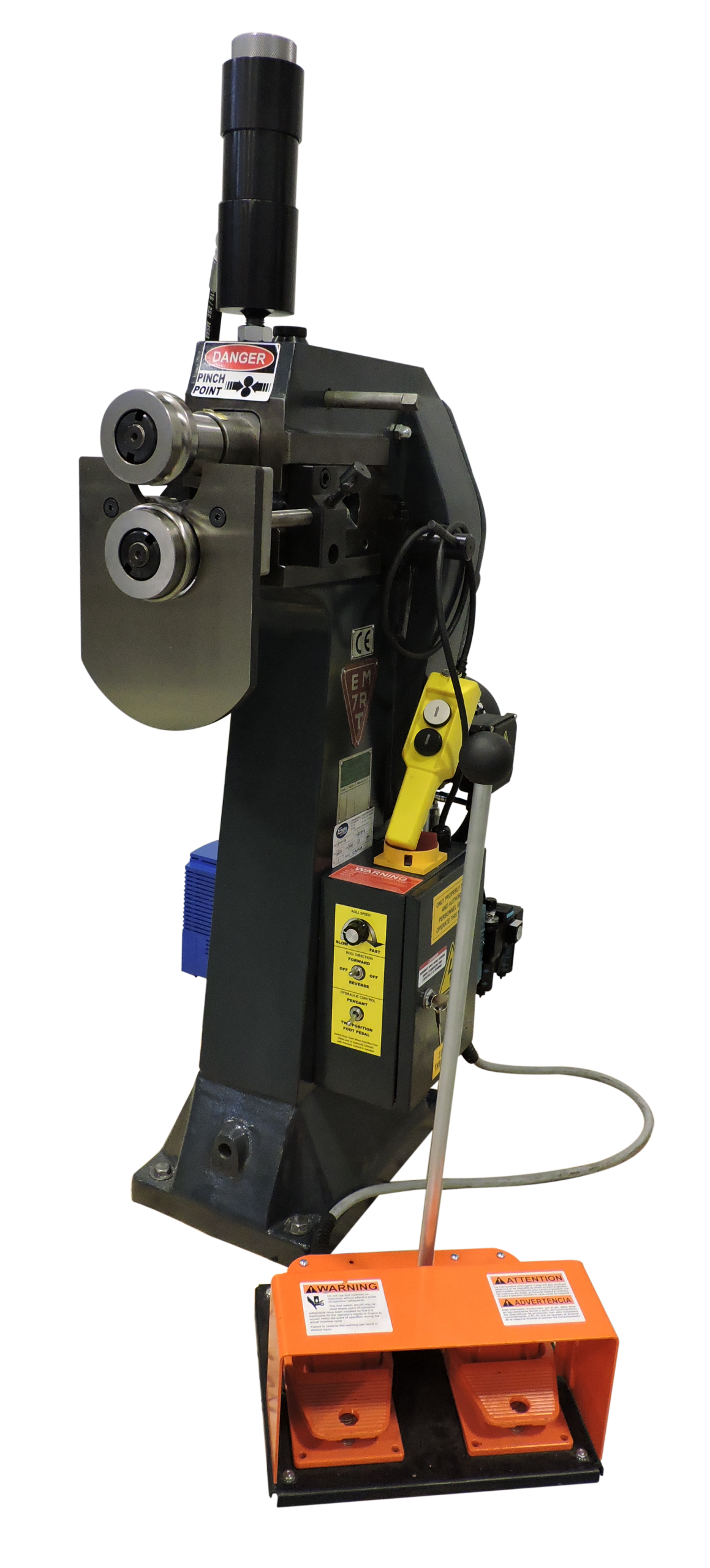

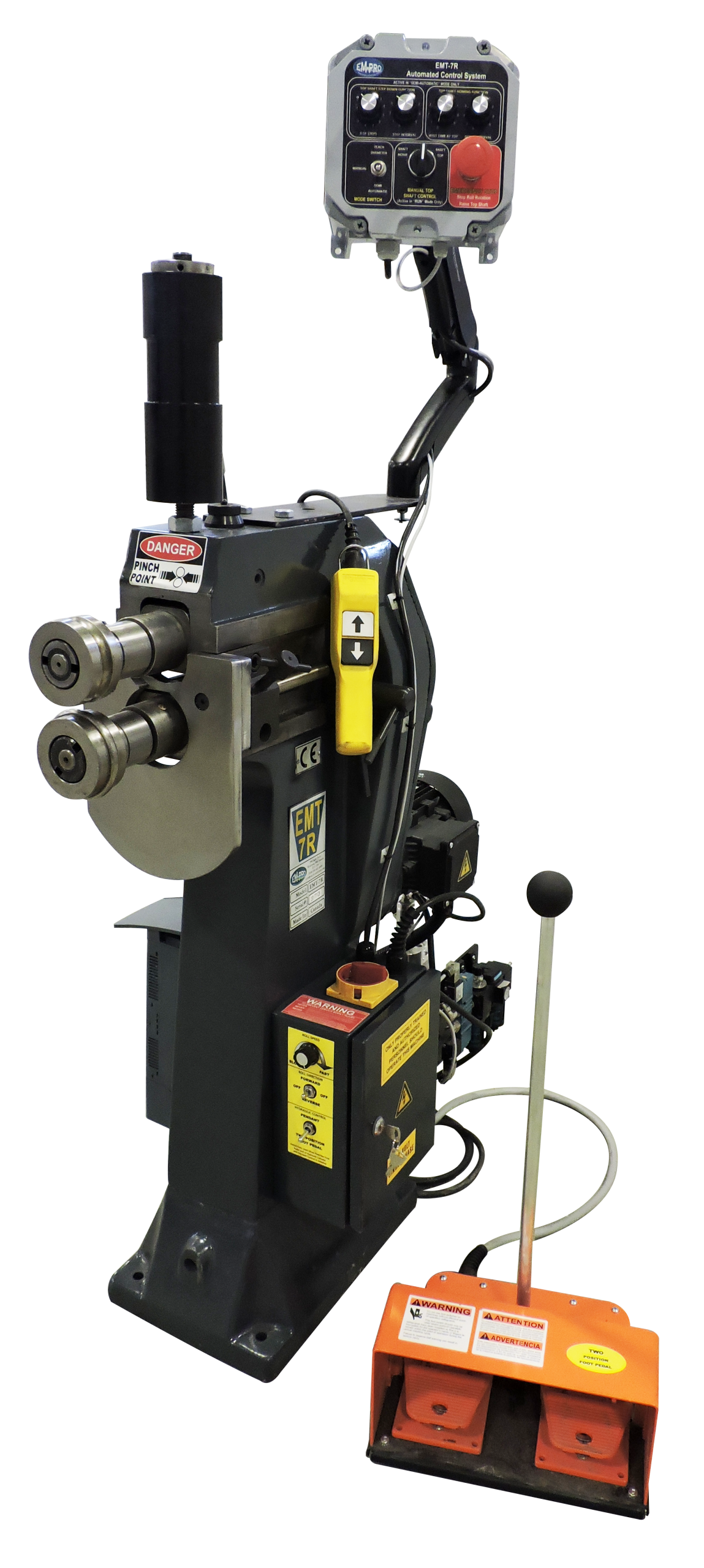

EMT-7R #36003 with Hydraulic Cylinder 110 Volt 1 Phase: $12,950.00 USD (Item Code: EMT-7R-HC) Video Demo

***220V Hydraulic Cylinder option DISCONTINUED—LIMITED STOCK***

EMT-7R with Hydraulic Cylinder 220 Volt 3 Phase  (Item Code: EMT-7R-HC-3PH) Video Demo — Inquire for Price

All machines come with a foot pedal, but the manual machines (#36001) you can choose to have either the variable speed or forward/reverse pedal. The standard foot pedal still has speed control on the dial, the variable changes speed based on how far the pedal is pushed down.

Retrofit Options for existing machines (pick one) Note each of the Listed Options is an addition to the base machine itself. Manual hand crank is standard with all models:
#1: Air Cylinder with Variable Speed Forward/Reverse Foot Pedal (ideal for shops that make Spiral Pipe fittings): Part #39003 : $1,950.00 USD
#2: Hydraulic Cylinder with Forward/Reverse Foot Pedal And Hand held Pendant (ideal for forming Vanstone Flanges): Part #39005 when bought as retrofit from air cylinder $5,495.00 USD; Part #39005-NP when bought as retrofit from manual: $4,795.00 USD

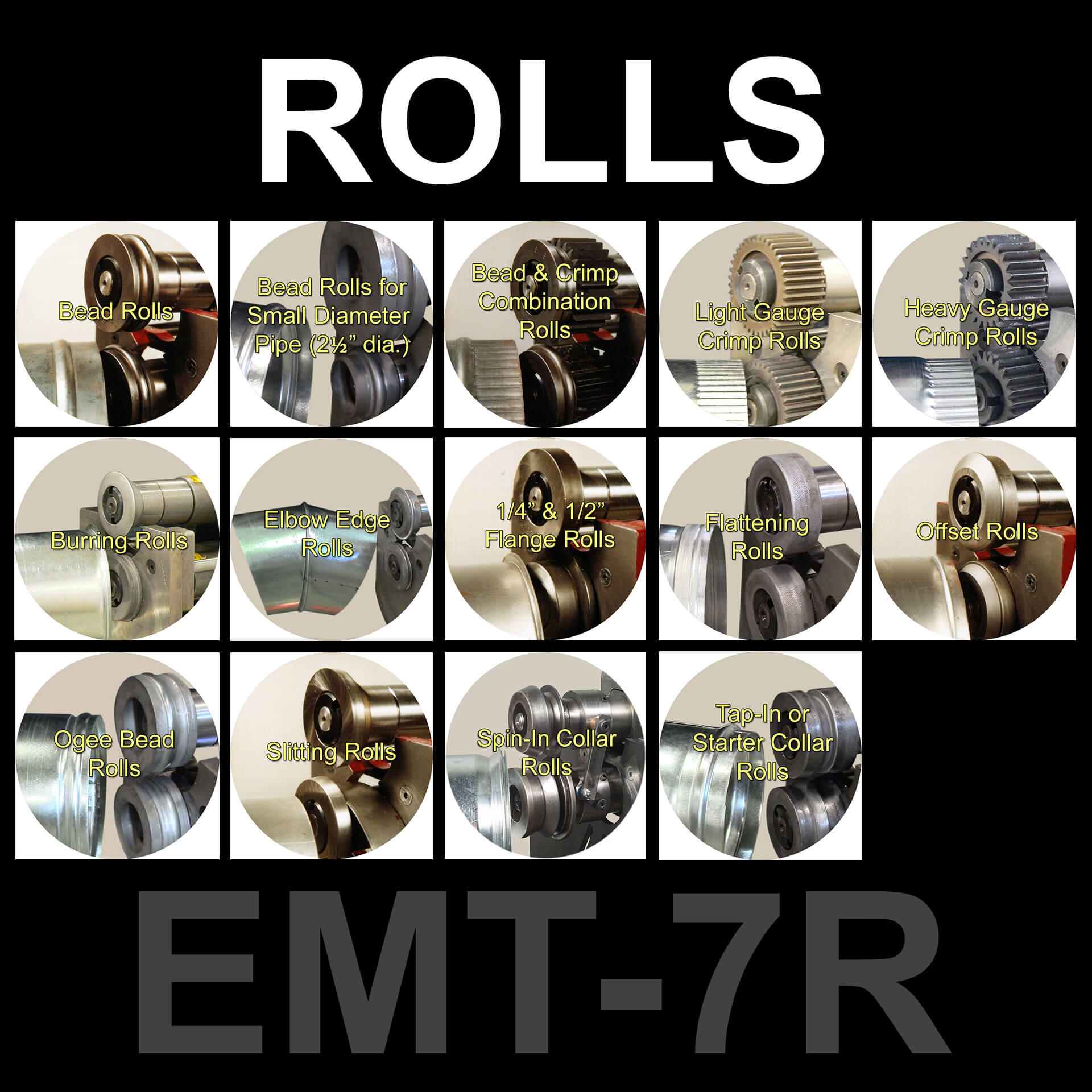

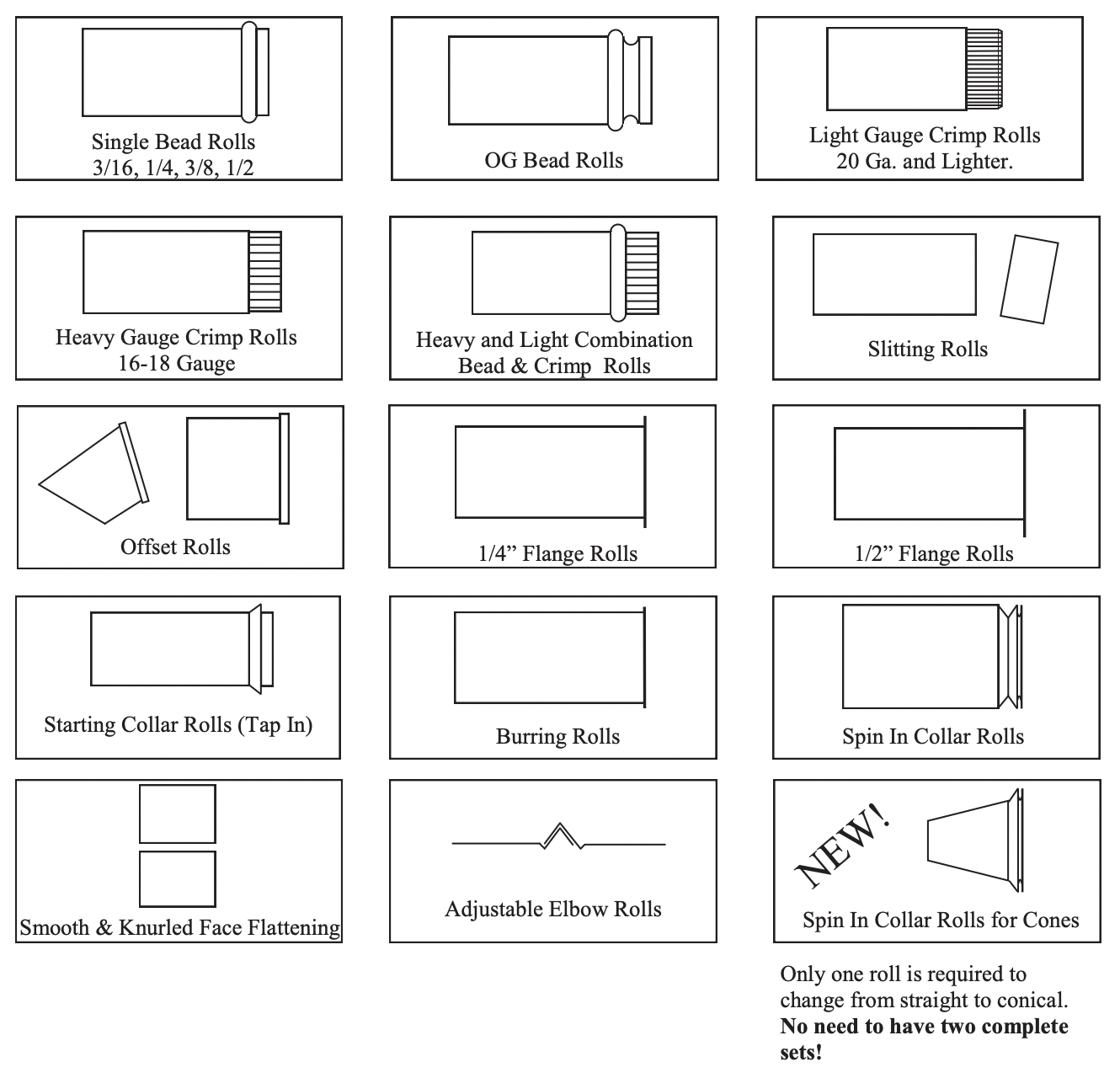

Roll Options:

Part #37000
3/8” Single Bead Rolls (note : Included with the purchase of a new EMT-7R)
$215.00 USD (set)

Part #37003
1/2” Single Bead Rolls
$395.00 USD (set)

Part #37005
1/4” Ogee Bead Rolls ( this is a Double Bead, one up and own down)
$395.00 USD (set)
Video: Ogee Bead Rolls

Part #37007 Crimping Rolls Heavy Gauge (16GA/18GA) (1-3/4″ Wide Crimp)
$485.00 USD (set)
Video: Light and Heavy Gauge Crimp Rolls

Part #37008 Crimping Rolls Light Gauge (20GA & Lighter) (1-3/4″ Wide Crimp)
$465.00 USD (set)
Video: Light and Heavy Gauge Crimp Rolls

Part #37009
1/4″ 90 Degree Flanging Rolls (Pipe Stays in Horizontal Position)
$295.00 USD (set)

Part #37010
1/2″ 90 Degree Flanging Rolls (Max. Capacity 16 GA Stainless), (Pipe Stays in Horizontal Position)
$295.00 USD (set)
Video: 1/2″ 90 Degree Flanging Rolls

Part #37011
1/2″ Offset Rolls
$315.00 USD (set)
Video: Offset Rolls

Part #37013
Flattening Rolls (Smooth Face)
$315.00 USD (set)
Video: Flattening Rolls

Part #37014
Flattening Rolls (Knurled Face)
$265.00 USD (set)
Video: Flattening Rolls

Part #37018
Tap In Rolls (for Starting Collars)
$495.00 USD (set)
Video: Tap In Rolls

Part #37021
Saddle Tap Rolls
$555.00 USD (set)
Video: Saddle Tap Rolls

Part #37024
Combination Bead & Crimp Rolls Light Gauge (20 ga and lighter)—includes 37006 Bead Rolls
$790.00 USD (set)
Video: Combination Bead & Crimp Rolls

Note: Crimping Only rolls do not mate with the 3/8” Single Bead rolls that are standard with machine

Part #37019 Elbow Edge Rolls
Item Code: EM-37019
For the Elbow Edging profile, often used as a Gorelocker to attach round segments to one another, the male is made by orienting the workpiece in between the top and bottom rolls; the female is made by orienting it over the top roll.
Video: Elbow Edge Rolls
$350.00 USD

FAQ’s

What are the 1/2″ Offset Rolls?

Sometimes a shop welds or spotwelds the Gores together instead of using a Gorelocker and connecting with the standing seam.  It’s typically in 18 ga and heavier; One end of the gore (segment) is flared out and the other end slips into the flared end and either spotwelded or welded.  Example is the welded Elbow in photo below: the ends are offset and then the elbow is assembled/welded.
