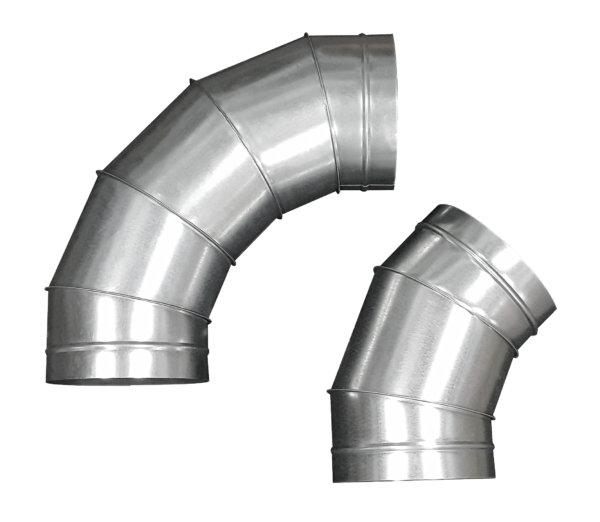

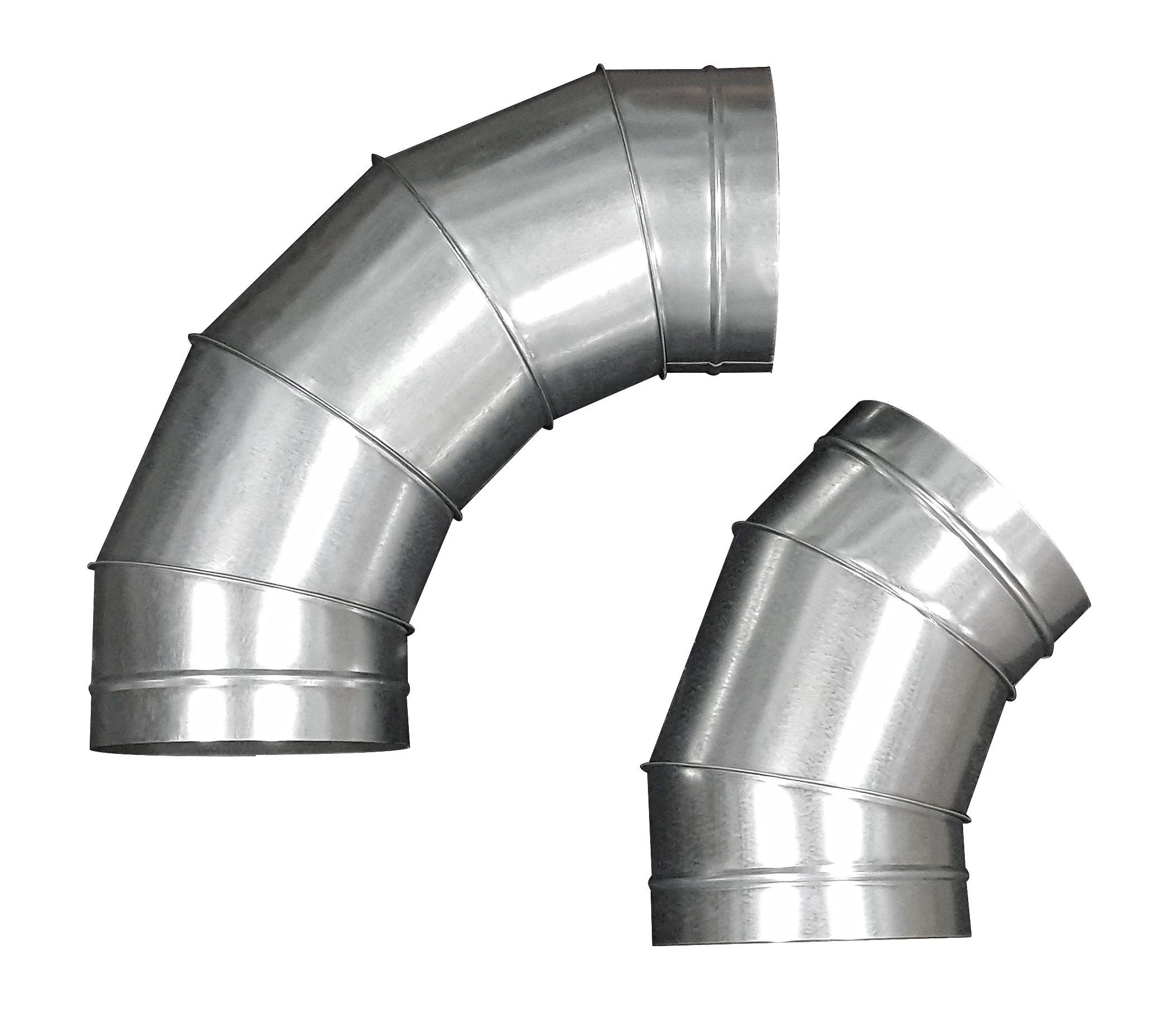

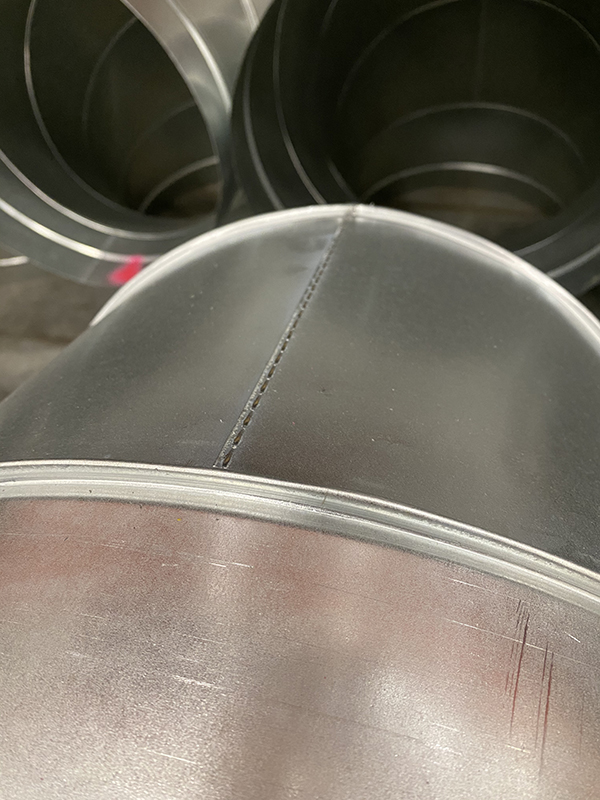

Conklin stocks 45 Degree Three Gored and 90 Degree Five Gored (Beaded) Elbows. Both ends are fitting sized, 1-1/2″ of straight in between the bead and the raw edge.
Note: slightly undersized to slide into pipe
Item Codes:
801-05 5″ #801 90 Deg. Gored Elbow
801-06 6″ #801 90 Deg. Gored Elbow
801-07 7″ #801 90 Deg. Gored Elbow
801-08 8″ #801 90 Deg. Gored Elbow
801-09 9″ #801 90 Deg. Gored Elbow
801-10 10″ #801 90 Deg. Gored Elbow
801-12 12″ #801 90 Deg. Gored Elbow
801-14 14″ #801 90 Deg. Gored Elbow
801-16 16″ #801 90 Deg. Gored Elbow
801-18 18″ #801 90 Deg. Gored Elbow
801-20 20″ #801 90 Deg. Gored Elbow
801-22 22″ #801 90 Deg. Gored Elbow
801-24 24″ #801 90 Deg. Gored Elbow
801-26 26″ #801 90 Deg. Gored Elbow
