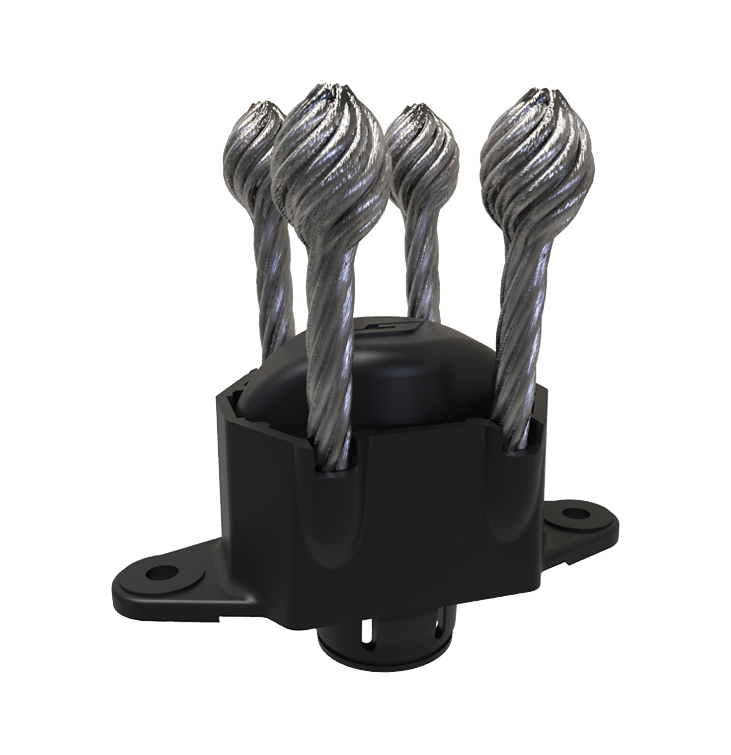

Item Code: GRPSX-MD Spider Cast In Place Insert – Metal Deck [SX-MD]
- Universal – one insert accommodates rod sizes from 3/8” to 3/4”, as well as No. 2 – No. 5 Swivel Cable Toggle kits
- Versatile – universal design allows decision on rod size or cable size to be made after the slab is poured
- Simple – allows the specification and stocking of one insert for all requirements, simplifying procurement through to installation
- Robust – low profile design aids impact protection; insert doesn’t displace when kicked or knocked on site
- Strong – up to 3000 lbs safe working load
- Secure – four wire anchors secure into concrete and ultrasonically welded head eliminates ingress during pour
- Fast – below deck install saves time due to swivel toggle technology on both cable and rod attachments; no assembly required, dramatically reducing installation time
Load Rating: 3,000 lbs
