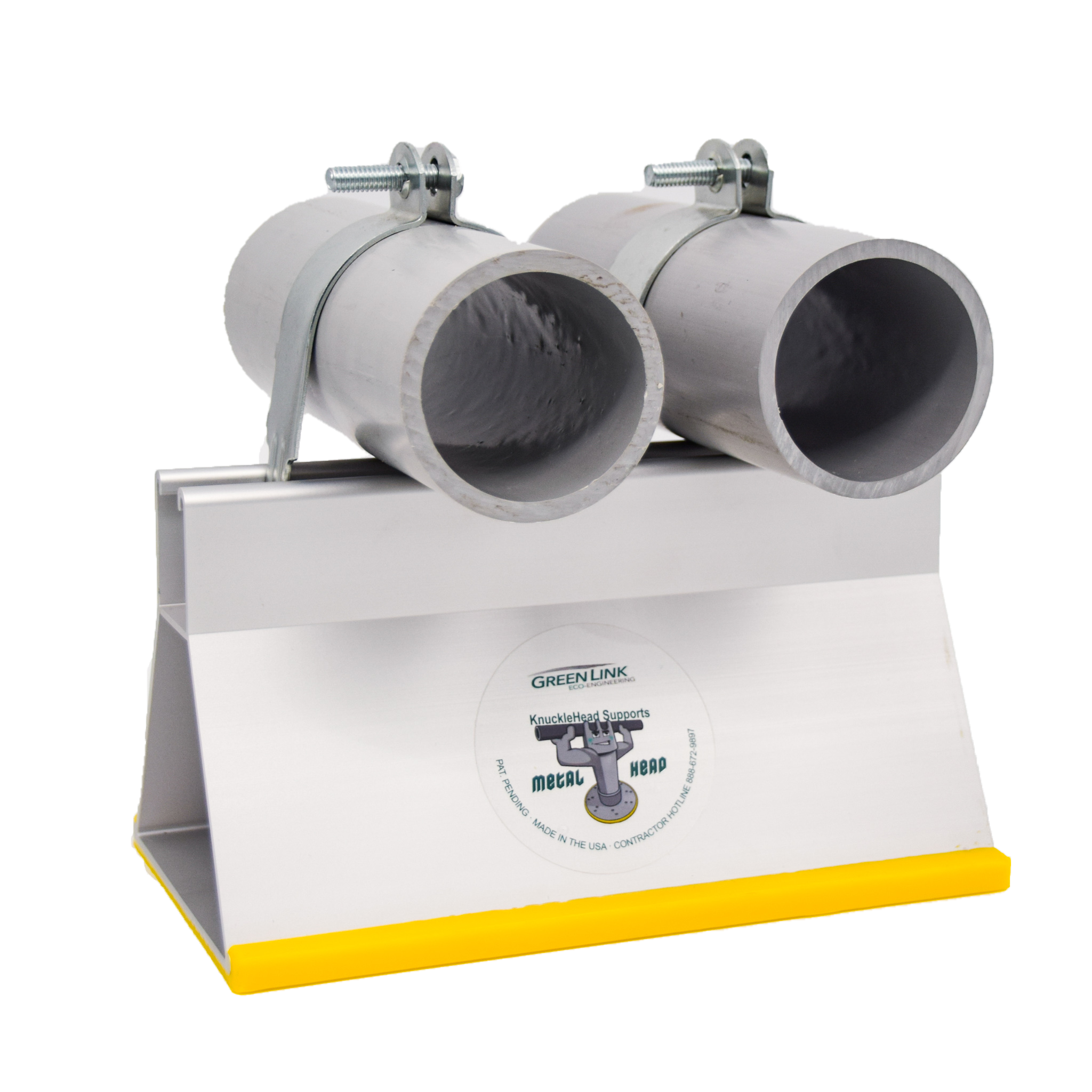

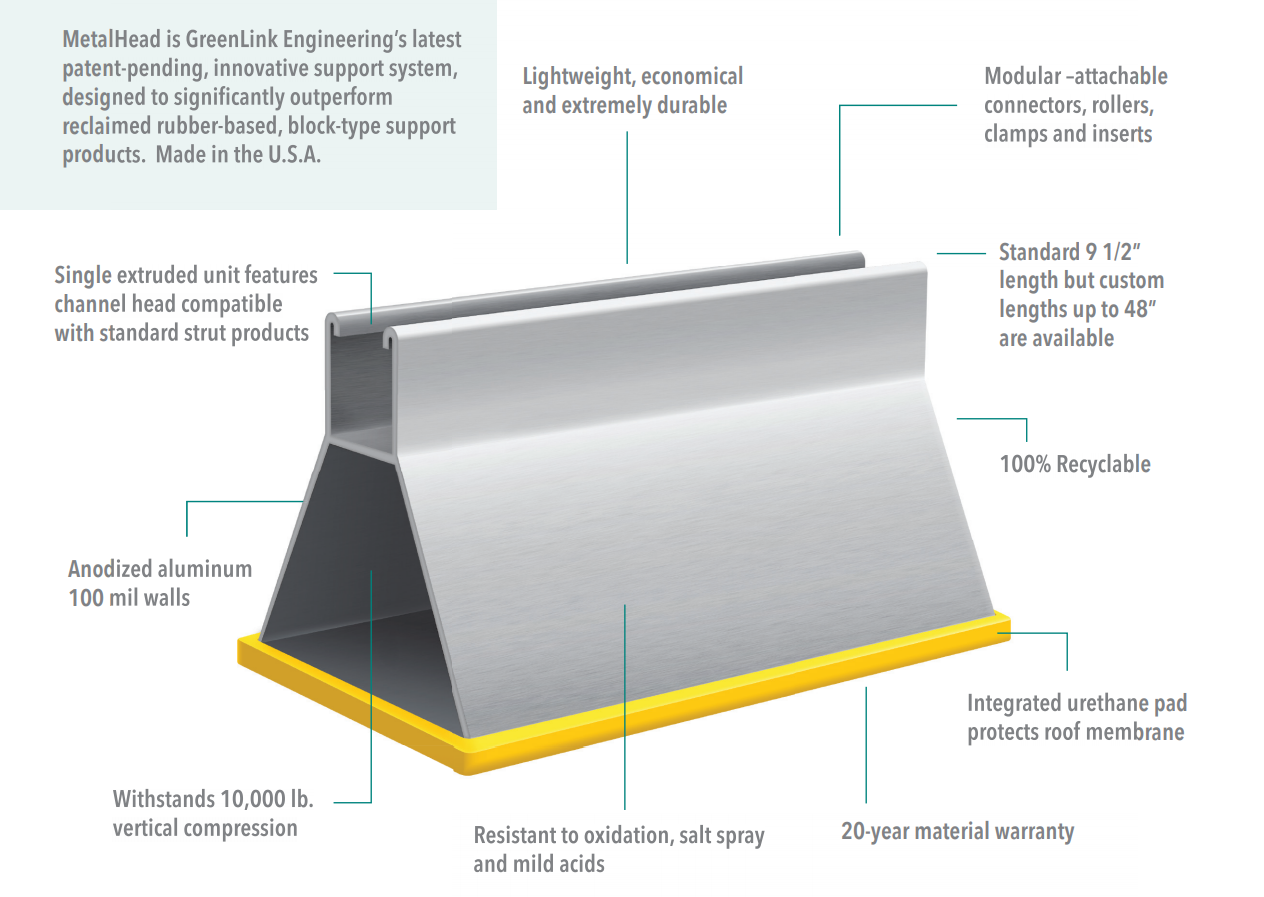

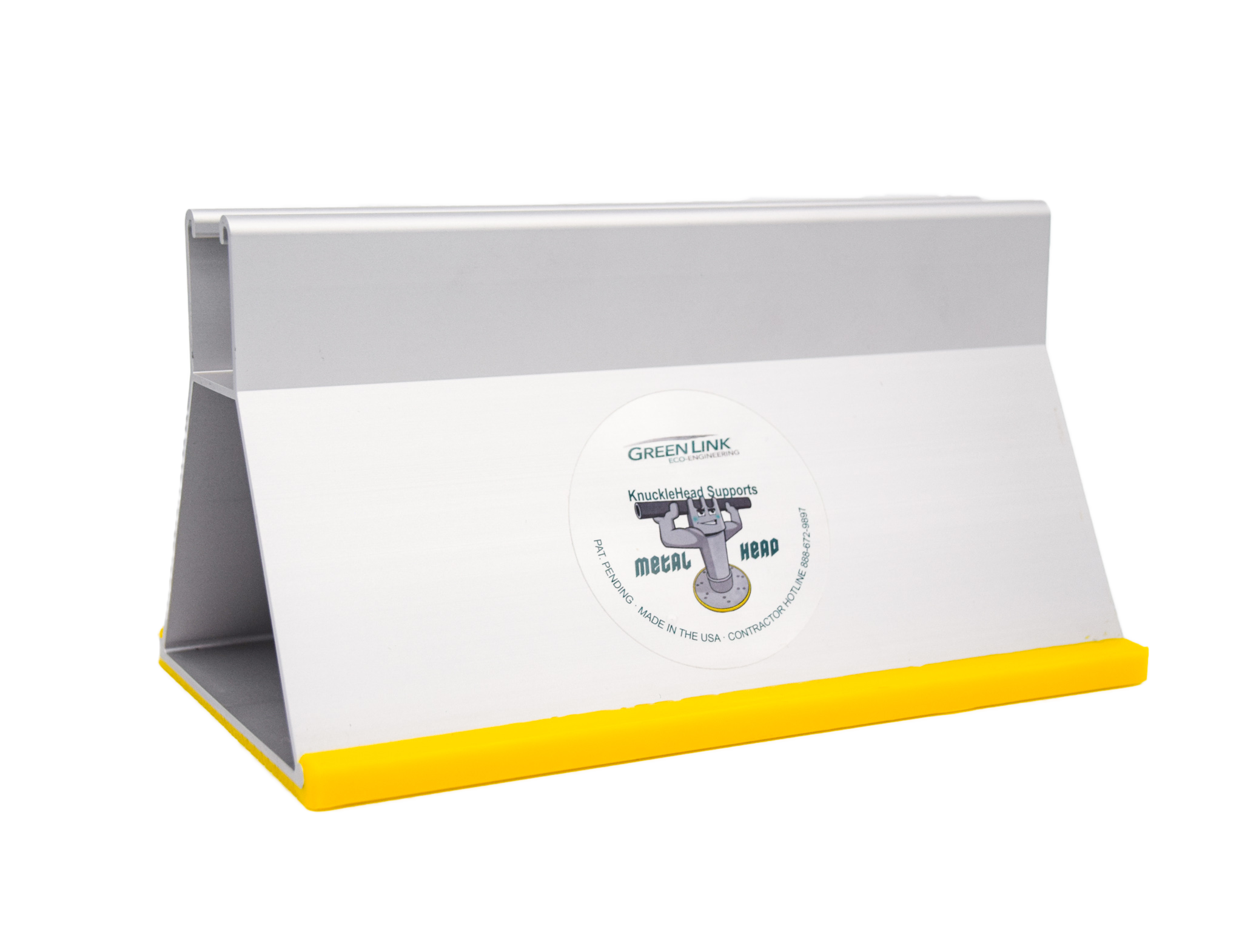

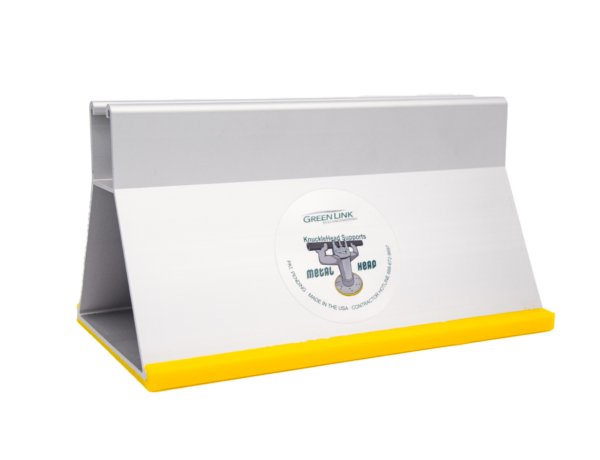

MetalHead is a strong and durable support system for pipes, cable management, duct and HVAC/R equipment. The aluminium triangular design provides a sturdy, 50 sq.in. base, with a built in 1 5/8 x 1 5/8”
strut channel top, compatible with all standard strut hardware and accessories. The MetalHead features 100-mil aluminium walls, capable of supporting 10,000 lbs. Its hard anodized and clear finish resists oxidation, salt spray and mild acids found in ponding water. The yellow molded urethane pad protects vulnerable surfaces from abrasion and is compatible with PVC, TPO, EPDM and asphalt-based roof membranes. The MetalHead will last for years and can be reused or recycled. Patent Pending. Made in the USA. Twenty-year limited warranty.
- 100 mil aluminum walls
- Withstands 10,000 pounds of vertical compression
- Resistant to oxidation, salt spray and mild acids
- Integrated urethane pad protects roof membrane
- 100% Recyclable
- Compatible with all standard strut channel hardware
- Weighs only 2 pounds
- 9.5″ long and 5″ high
- 20 year material warranty
- Made in the U.S.A.
